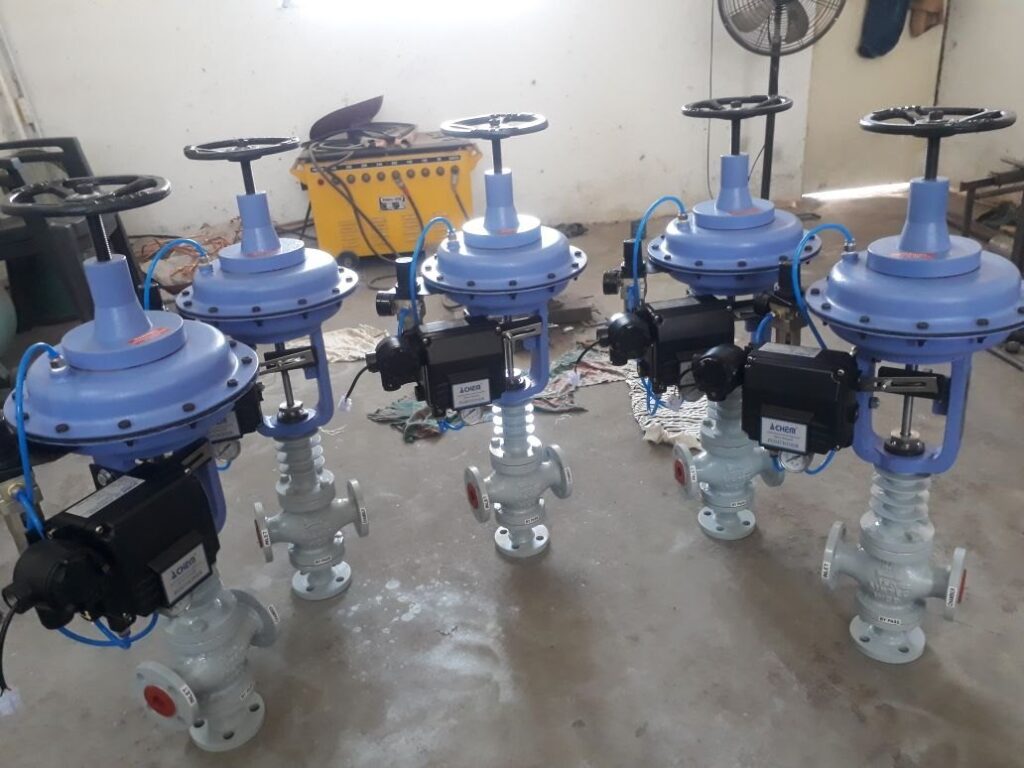

2/2 & 3/2 way high thermic fluid control valve
OUR PRODUCTS RANGE
Trusted 2/2 & 3/2 way high thermic fluid control valve Manufacturerand Supplier
Multitech Valves & Automation takes great pride in introducing a wide range of high thermic fluid control valves, including 2/2 & 3/2 way options, that possess an array of exceptional qualities. As your trusted manufacturing partner, we not only provide impeccable gate valves, but also offer competitive prices, efficient delivery services, and product guarantees. Our commitment to excellence is evident in our meticulous attention to key areas, ensuring the production of durable and highly adaptable 2/2 & 3/2 way high thermic fluid control valves.
8 + Years of
working experience
India's Most Trustworthy Brand Name in Mfg. Premium Range in automation Valves
2/2 & 3/2 way high thermic fluid control valve :
This valve configuration consists of 2 ports and 2 positions. It means there are two flow paths and two possible positions for the valve: open and closed.
In the open position, fluid flows through the valve from one port to the other. In the closed position, the valve blocks the flow of fluid.
This valve configuration consists of 3 ports and 2 positions. It means there are three flow paths and two possible positions for the valve: one inlet port and two outlet ports, typically labeled as "A," "B," and "P" (for pressure).
In one position, fluid flows from the inlet port to one of the outlet ports (A or B), while the other outlet port is closed. In the other position, fluid flows from the inlet port to the other outlet port, while the first outlet port is closed.
Types of 2/2 & 3/2 way high thermic fluid control valve :
Applications :
- Industrial Heating Systems
- Thermal Oil Circuits
- Industrial Automation
- Thermal Management Systems
- Process Control Systems
- Heat Transfer Applications
- Hydraulic and Pneumatic Systems
- Industrial Automation
- Fluid Heating Applications
Features :
- High Temperature Resistance
- Two-Position Operation
- Versatile Flow Control
- Fast Switching
- Durable Construction
Technical Details :
| OPERATION | DIAPHRAGM TYPE / CYLINDER |
| MODEL | ACLD-220/ACHD-450 |
| TYPE | DIAPHRAGM TYPE THERMIC FLUID CONTROL VALVE |
| SIZE RANGE | 1" TO 8" |
| BODY & END PIECE | WCB/S.S. |
| DIAPHRAGM | NITRILE CANVAS MOULDED |
| DIAPHRAGM COVER | SHEET, METAL, PRESSING |
| WORKING PRESS | 150# |
| WORKING TEMP | UPTO 450 °C |
| SEATING | METAL TO METAL |
| MEDIA | THERMIC FLUID |
2/2 & 3/2 way high thermic fluid control valve :
This valve configuration consists of 2 ports and 2 positions. It means there are two flow paths and two possible positions for the valve: open and closed.
In the open position, fluid flows through the valve from one port to the other. In the closed position, the valve blocks the flow of fluid.
This valve configuration consists of 3 ports and 2 positions. It means there are three flow paths and two possible positions for the valve: one inlet port and two outlet ports, typically labeled as "A," "B," and "P" (for pressure).
In one position, fluid flows from the inlet port to one of the outlet ports (A or B), while the other outlet port is closed. In the other position, fluid flows from the inlet port to the other outlet port, while the first outlet port is closed.
Types of 2/2 & 3/2 way high thermic fluid control valve :
Applications :
Features :
- Industrial Heating Systems
- Thermal Oil Circuits
- Industrial Automation
- Thermal Management Systems
- Process Control Systems
- Heat Transfer Applications
- Hydraulic and Pneumatic Systems
- Industrial Automation
- Fluid Heating Applications
- High Temperature Resistance
- Two-Position Operation
- Versatile Flow Control
- Fast Switching
- Durable Construction
Technical Details :
| OPERATION | DIAPHRAGM TYPE / CYLINDER |
| MODEL | ACLD-220/ACHD-450 |
| TYPE | DIAPHRAGM TYPE THERMIC FLUID CONTROL VALVE |
| SIZE RANGE | 1" TO 8" |
| BODY & END PIECE | WCB/S.S. |
| DIAPHRAGM | NITRILE CANVAS MOULDED |
| DIAPHRAGM COVER | SHEET, METAL, PRESSING |
| WORKING PRESS | 150# |
| WORKING TEMP | UPTO 450 °C |
| SEATING | METAL TO METAL |
| MEDIA | THERMIC FLUID |
